Overview
The Import Residuals feature enables ISOs to upload residual reports into the CRM using Excel or CSV files. This helps centralize residual data, reduce manual entry, and make imported reports available for review, reporting, and publishing within the CRM.
If the CRM detects new merchants in the file you’re importing, you can automatically create new merchant accounts during the final step of the import process. For each newly created merchant, you can also choose to automatically create a linked lead.
This article explains how to upload and import a residuals report. It also shows how to map report columns, set field formats, and compare report logs when reviewing residual discrepancies.
Prerequisites
Before importing a residuals report, make sure your report is saved as an Excel or CSV file and includes, at minimum, the following columns:
- MID/Account #
- DBA/Merchant Name
- Net Income
You should also know the processor, report month and year, and deposits month for the residuals file you are importing.
ℹ️ To compare report logs, you must be an administrator-level user with access to view and export residual report logs.
Navigating to Import Residuals

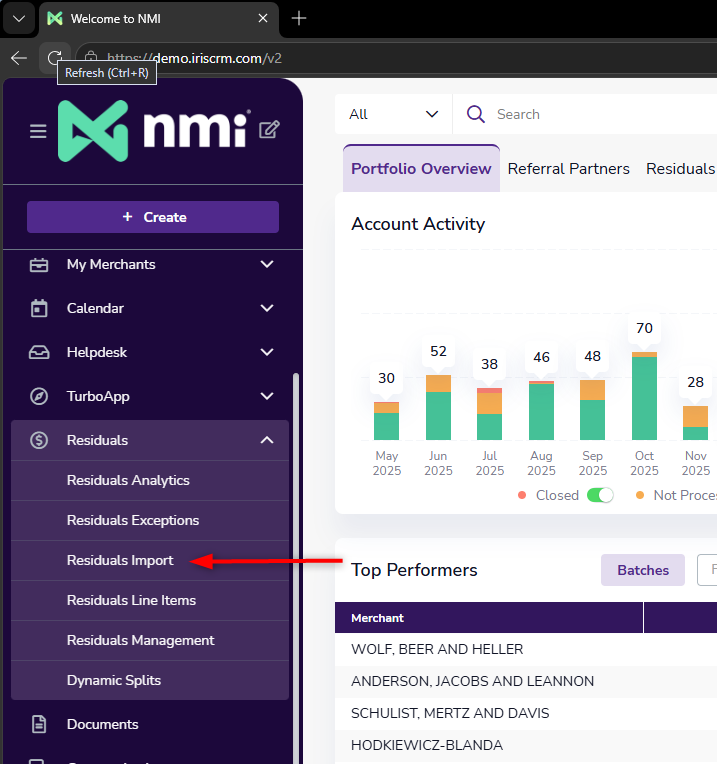

To open the Import Residuals page, expand the Residuals menu in the main sidebar, then click Residual Import.
You can also access the page by going to Manage → Residuals → Import Residuals.
How does the residuals import feature work?
The residuals import feature allows ISOs to bring processor residual report data into the CRM and align that data with CRM residual fields (see CRM field mapping reference below for a complete list of available fields).
The import process includes four main steps:
- Upload your residuals report.
- Map your residual report columns to the corresponding CRM columns.
- Set field formats, if needed.
- Preview your settings and complete the import.
If your report includes merchants that do not already exist in the CRM, you can choose whether to create new merchant accounts before completing the import.
☝️ For each new merchant created from a residuals report, Merchant Central can also create a linked lead automatically. To enable this, contact Merchant Central Support and ask them to enable the CREATE_LEAD_FOR_NEW_MERCHANT feature flag. The lead status is based on the Auto Created Lead Status setting for the group assigned to the residuals report.
After a report has been imported, administrators can use report logs to review residual preparation details. The Compare Logs feature helps administrators compare previous logs against current preparation results to identify changes more quickly.
How to upload your residuals import
Upload the file

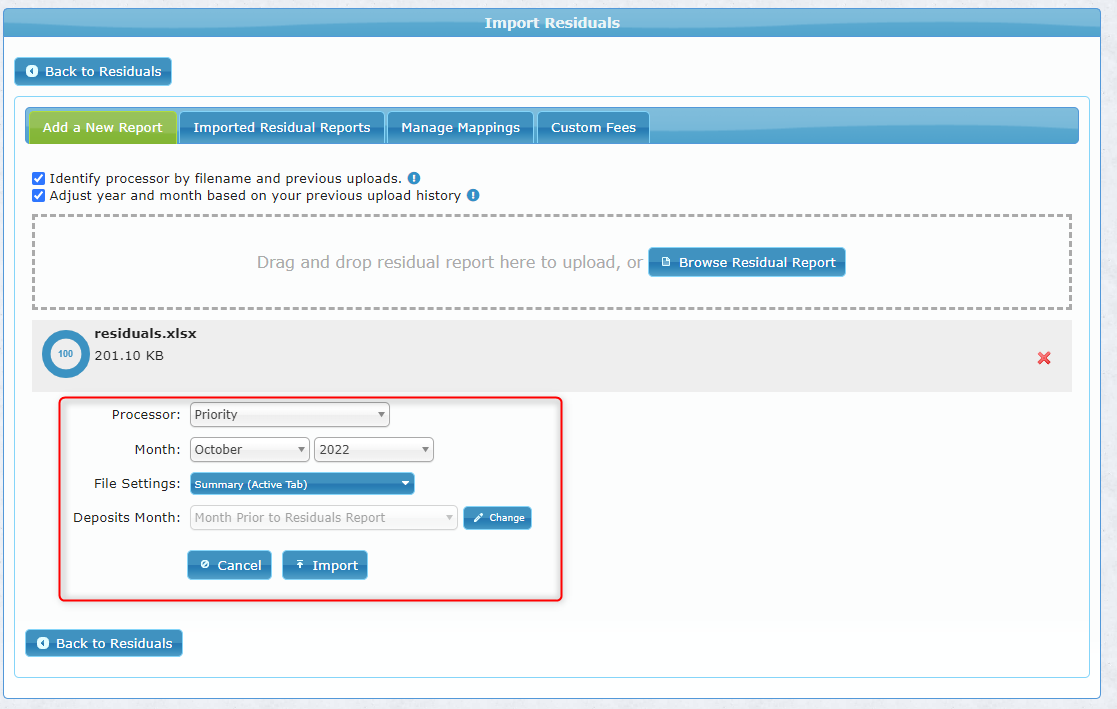

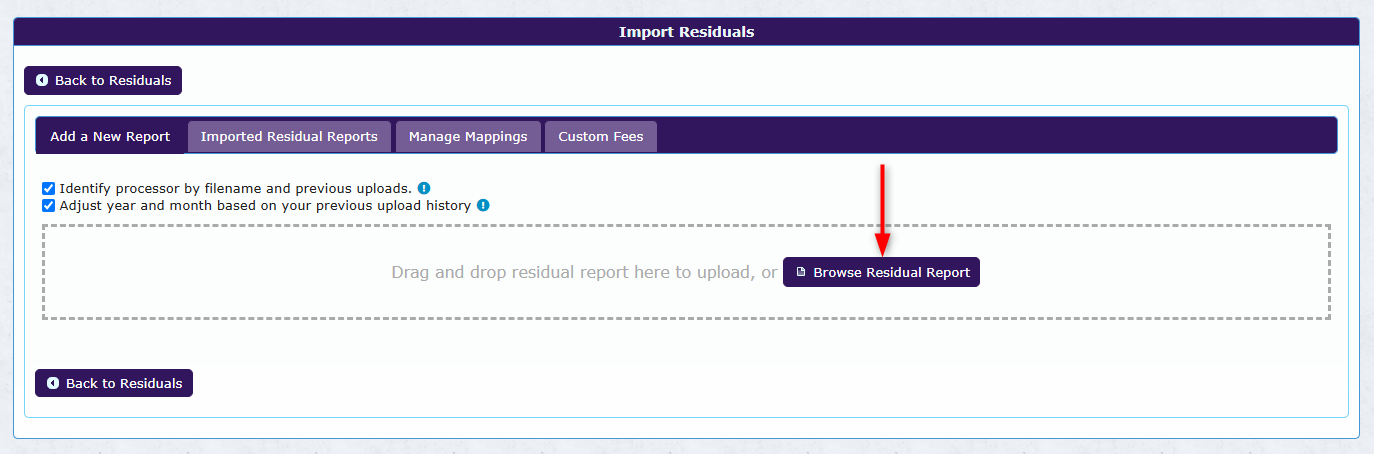

On the Import Residuals page, select your import options and choose the Excel or CSV file you want to upload.

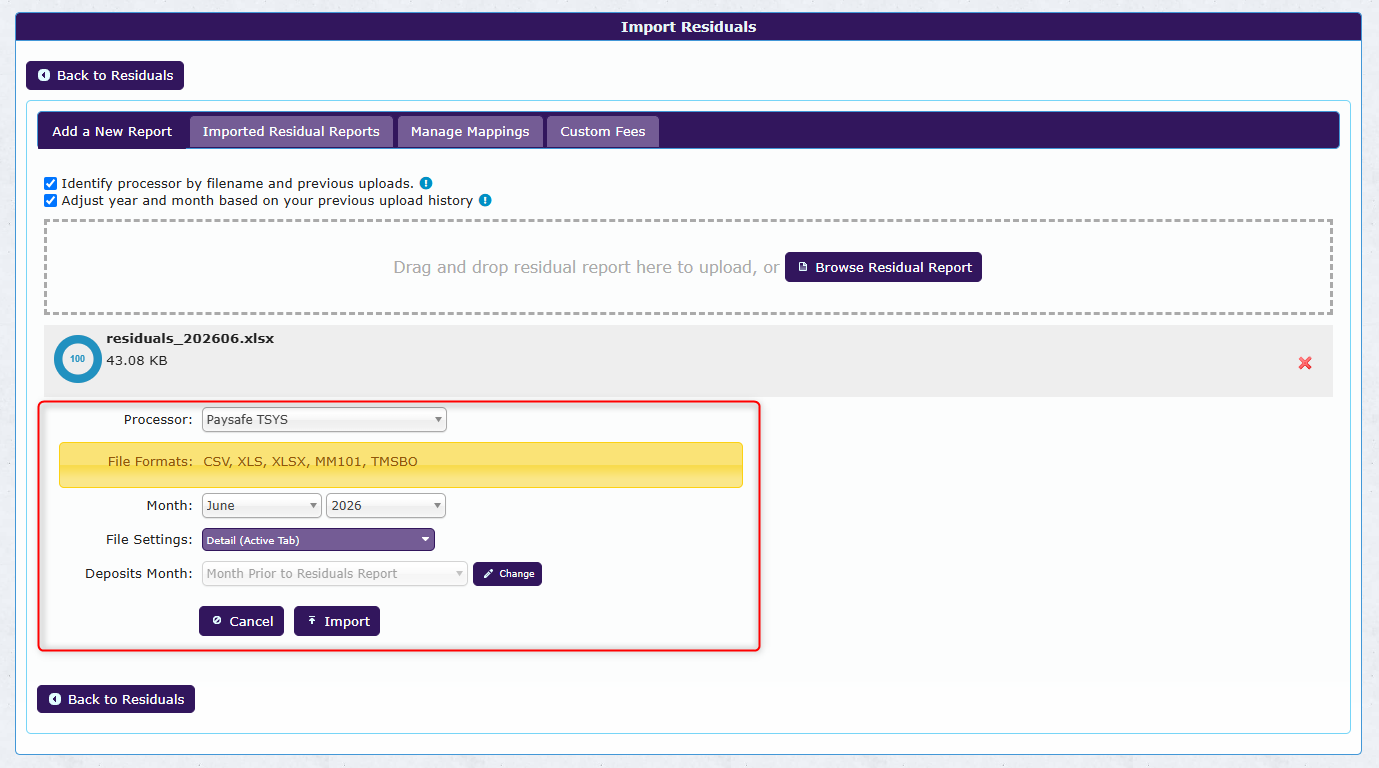

After the file is uploaded, select the processor, report month, and report year. If needed, update the deposits month.
Merge multiple Excel tabs
If your Excel file includes multiple tabs, you can select the tabs you want to merge before importing the report data into the CRM.

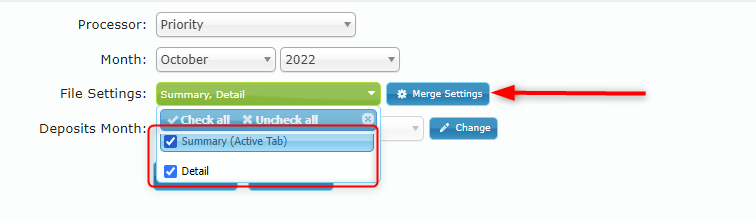

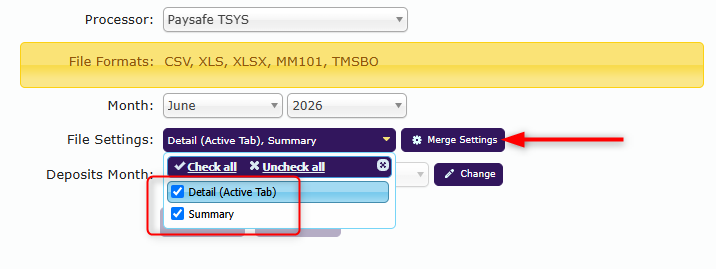

To import multiple tabs, select the tabs and click Merge Settings.

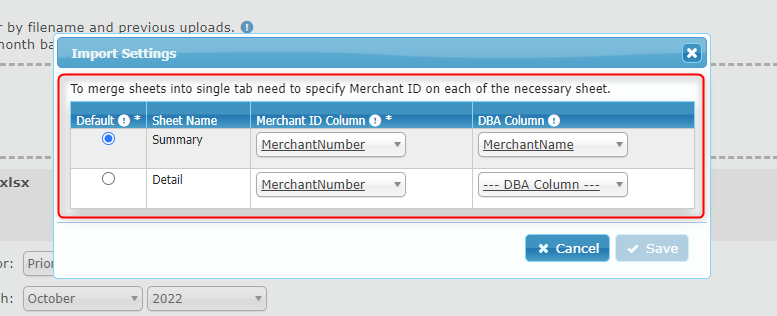

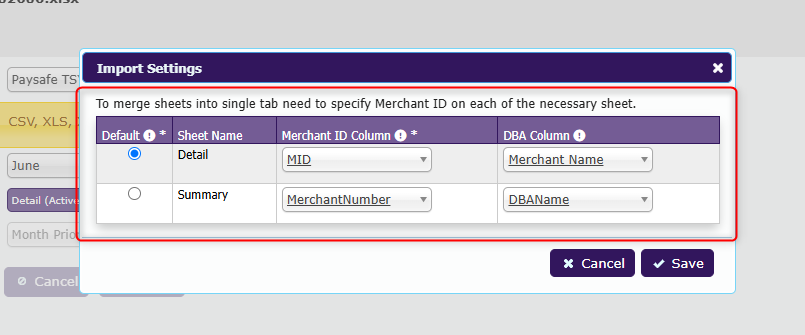

In the popup window that appears, select the Merchant ID column, or MID, for each enabled tab. You must also select the DBA column on at least one tab.

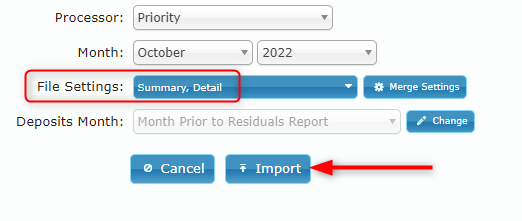

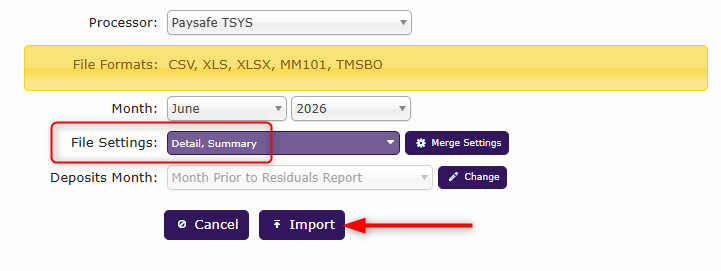

Once you've made your updates click Save. The enabled tabs are now shown in the File Settings dropdown. You can now click Import to begin importing the residuals data.

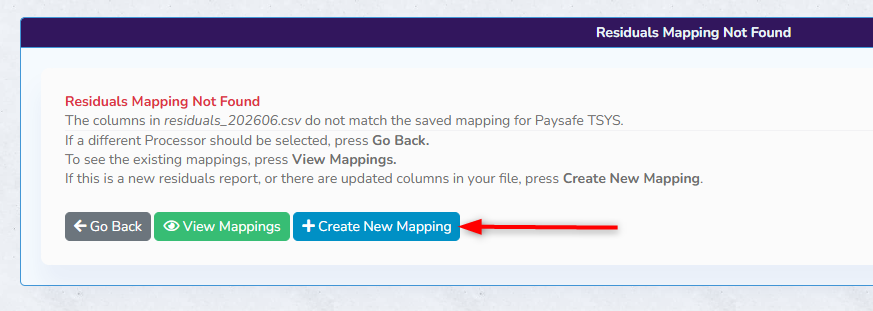

In the next step, click Create New Mapping.
ℹ️ If the columns in the uploaded file match the mappings saved with a previous import, then the saved mappings will be automatically applied, and you can review the mappings using the View Mappings button.

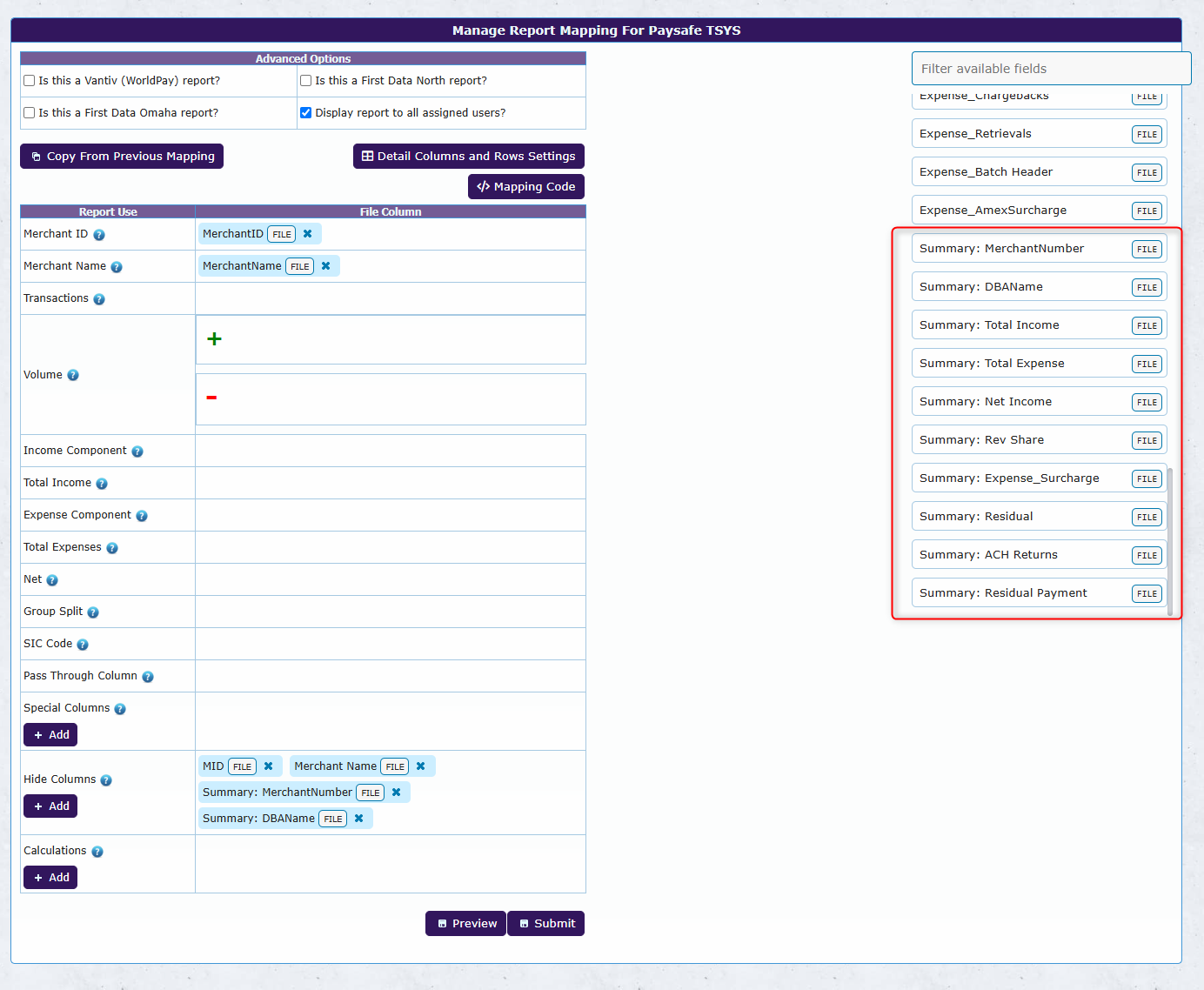

Fields from multiple Excel tabs display with the appropriate tab name prefix. In the example below, the highlighted fields came from the Summary tab in the Excel file.
How to map your residuals report

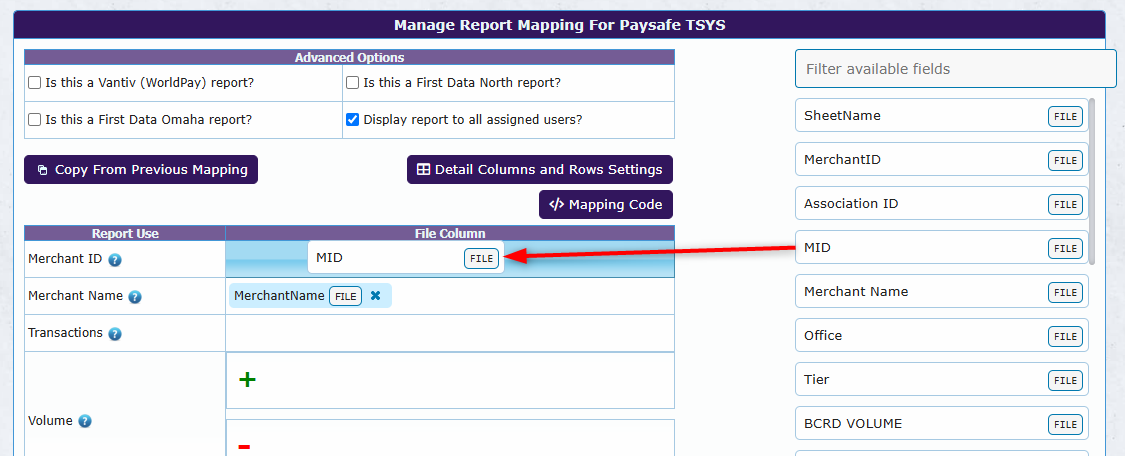

To create a new mapping, drag the residual report column from the right side of the mapping page and drop it into the appropriate CRM residual field on the left, in the Input column.
Delete a mapping

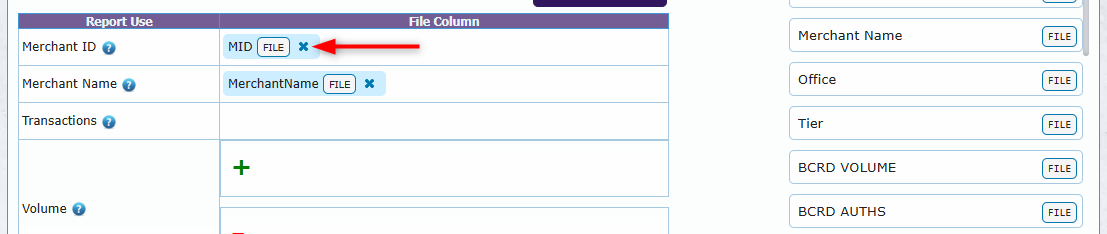

To delete a mapping, click the x on the column you want to remove.
CRM field mapping reference
Use the table below to determine which residual report columns should be mapped to each CRM field.
| Map this CRM field | To this residual report column |
| Merchant ID | Report column containing the MID or merchant account number. Only numerical values are accepted. |
| Merchant Name | Report column containing the DBA or merchant name. |
| Transactions | Report column or columns that make up the total number of transactions. |
| Volume | Report column or columns that make up the total volume. Items that increase volume should be dragged to the + section. Items that decrease volume, such as credits, should be dragged to the - section. |
| Income | Individual income columns, if applicable. Adding individual income columns to this section allows them to be modified using CRM Residual Templates. |
| Expenses | Individual expense columns, if applicable. Adding individual expense columns to this section allows them to be modified using CRM Residual Templates. |
| Total Income | Report column that represents total revenue before expenses. |
| Total Expenses | Report column that represents total expenses. |
| Net | Report split percentage column. You can optionally map this column if the ISO receives a percentage of the net amount. The split percentage will be multiplied by the Net column. |
| Special Columns | Columns that can be used to calculate unit cost, if applicable. To use this feature, your file must include the total cost for the item and the number of units that contribute to the cost. |
| Hide columns | Report columns that should be excluded from the Residuals Details tab. Columns mapped here will be hidden from all users. |
| Calculations | Additional calculated columns, if applicable. The calculated column must be based on an existing column in your residuals file. More info: Calculated Columns |
After mapping your fields, click Submit. The CRM opens the optional field formatting page.
How to preview and complete the residual import
In the final step, the CRM displays a preview of your residuals upload.
If the report includes new merchants that do not already exist in the CRM, you can choose which merchant accounts to create before completing the residual upload.

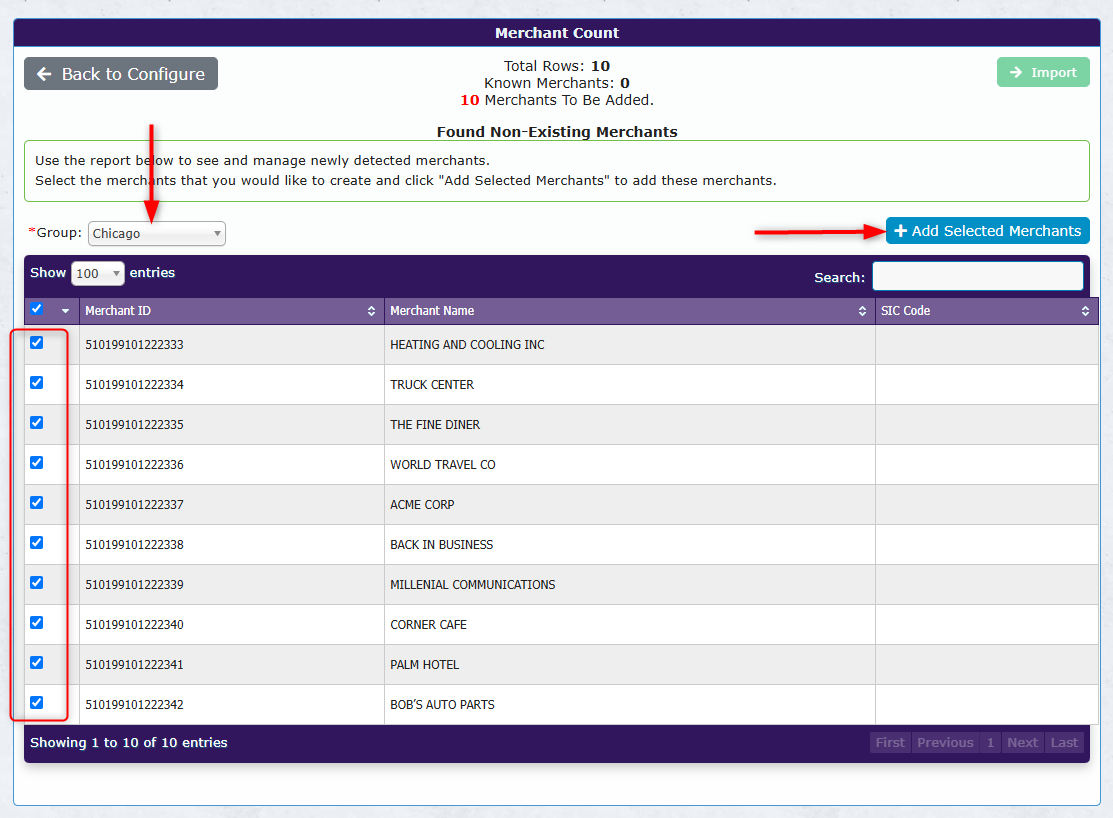

The new merchants display in a table. Select the merchants you want to create, select a user group, and click Add Selected Merchants.

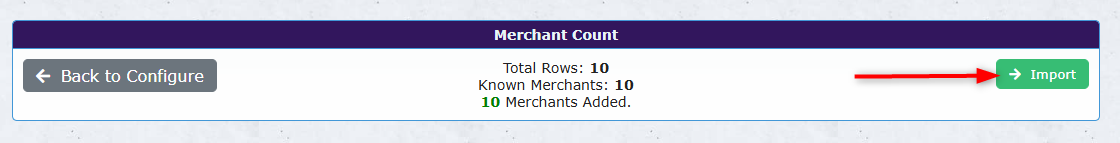

The new merchant accounts will now be created. Once the process is completed, the page displays the number of new merchants that were added. You can now finish importing the residuals report by clicking the Import button.

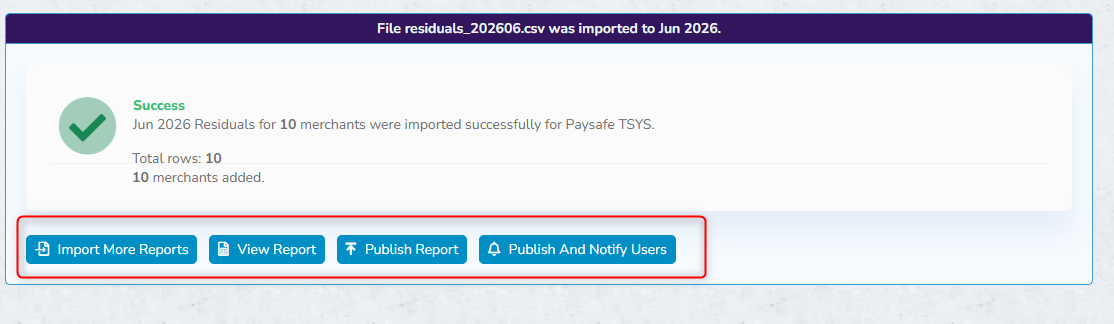

When the import is complete, a confirmation message appears. From the confirmation message, you can continue to upload more reports, view the residuals you just imported, or publish the report so it is visible to users.
How to compare report logs
Administrators can use the Compare Logs feature to review changes between previous residual report logs and the current report preparation results. This makes it easier to identify discrepancies in residual values, such as changes to Agent Net amounts, without manually reviewing each log line by line.
This feature is available to administrator-level users who can view and export residual report logs.
When to use Compare Logs
Use Compare Logs when you need to investigate why residual totals or individual values changed after a report was previously reviewed, exported, or used for payout calculations.
For example, an administrator may use this feature to:
- Compare a current residual report against a previous report log.
- Identify changes that affected Agent Net totals.
- Review discrepancies before publishing or republishing residuals.
- Confirm what changed between earlier exported results and current report data.
Comparing report logs
- Click the Residuals Import link in the main sidebar.

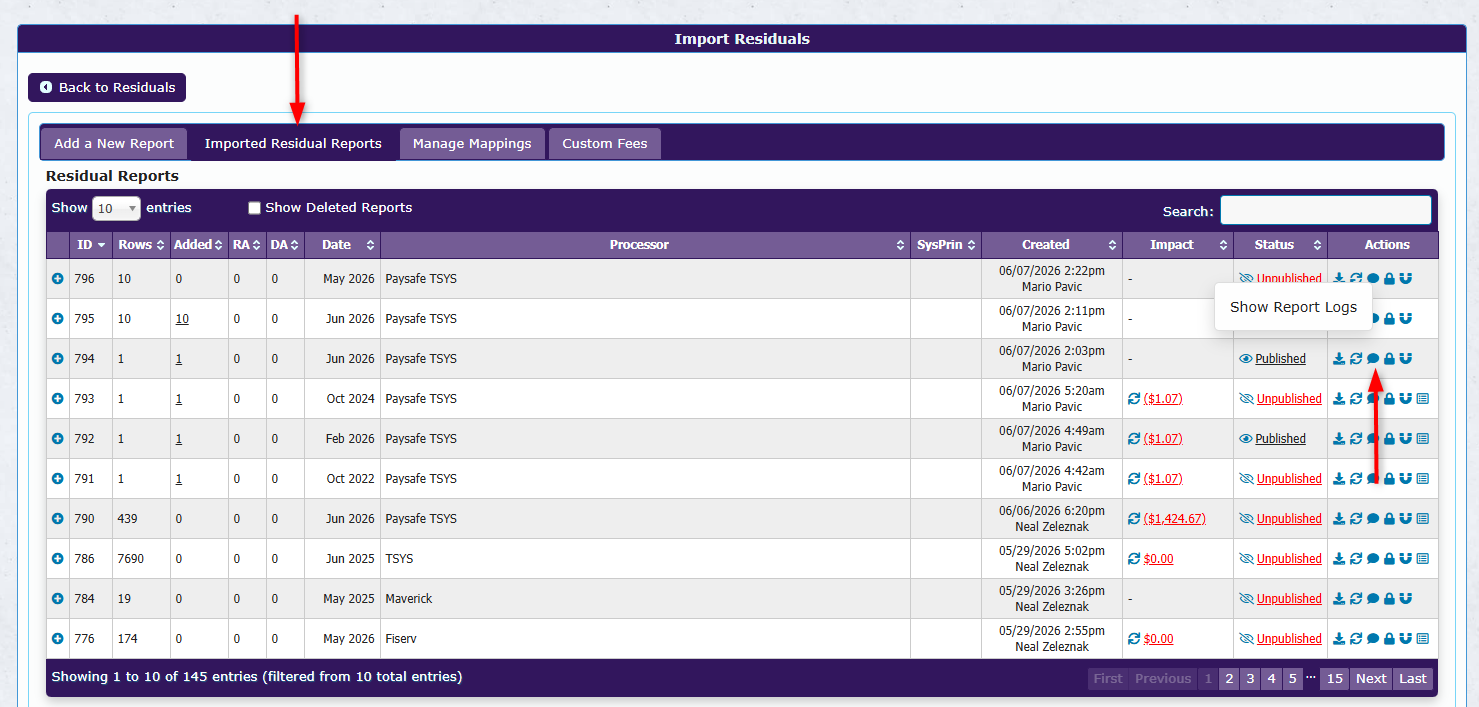

- Open the Imported Residual Reports tab.
-
Click the Show Report Logs shortcut in the Actions column for the appropriate report.
-

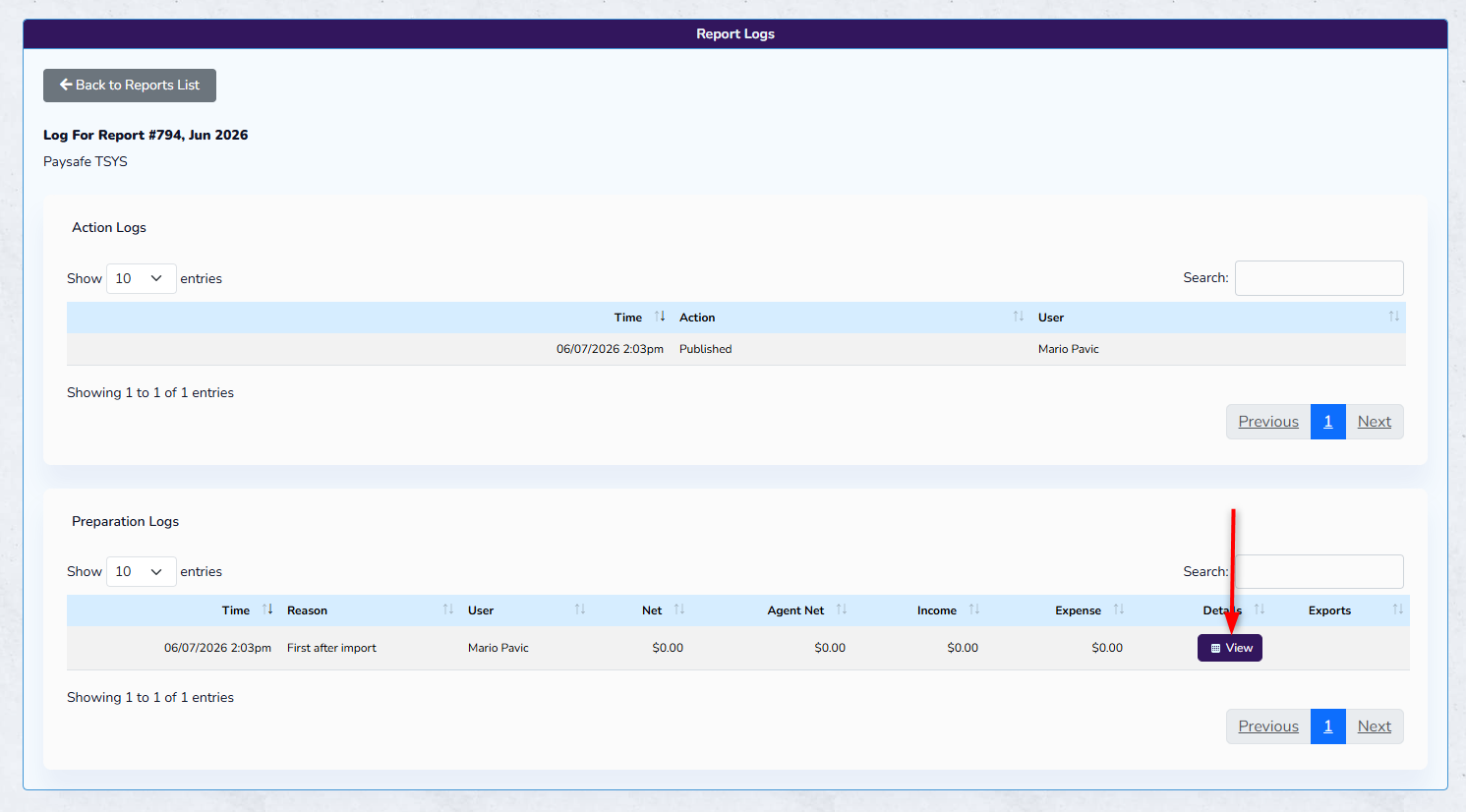

The report log page now opens up. Click View on the log you wish to inspect further.
-

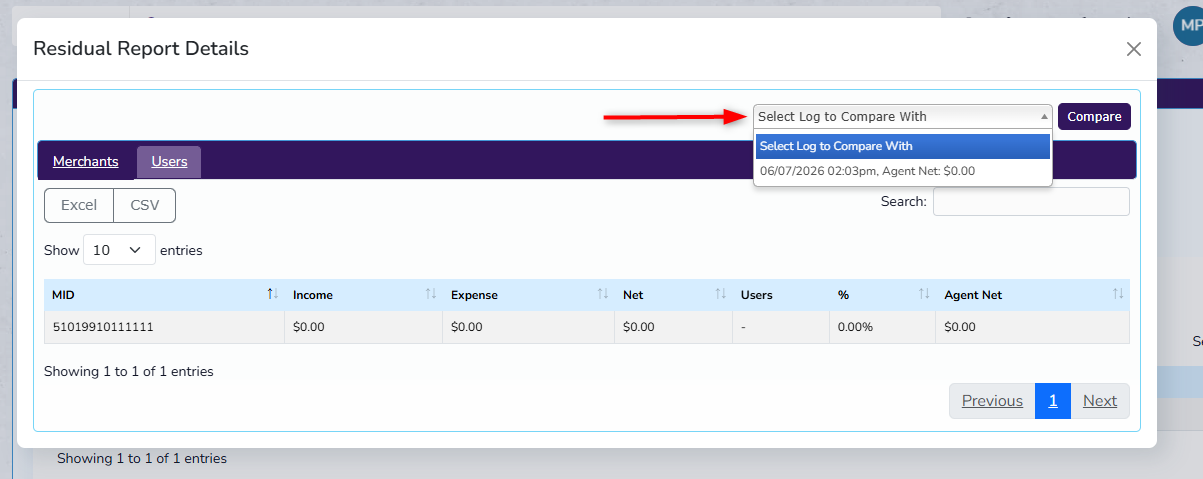

The Residual Report Details popup now appears as shown in the below image. Select a log to compare the report with and click the Compare button.
- Review the comparison results to identify differences between the selected log and the current report data.
The comparison highlights differences between the selected historical log and the current report preparation results, helping administrators quickly locate the values that changed.
Frequently Asked Questions
- What file formats can I use for a residuals import? You can import residual reports in Excel or CSV format.
- Which columns are required in the residuals report? The file must include, at minimum, MID/Account #, DBA/Merchant Name, and Net Income.
- Can I import an Excel file with multiple tabs? Yes. Select the tabs you want to include, click Merge Settings, and choose the Merchant ID column for each enabled tab. You must also select the DBA column on at least one tab.
- Can the CRM create new merchants during the import? Yes. If the CRM detects merchants in the file that do not already exist in the CRM, you can select which merchants to create during the preview step.
- When should I use Compare Logs? Use Compare Logs when you need to identify what changed between previous residual report logs and the current report preparation results, especially when investigating changes to totals such as Agent Net.
