Overview

The Repay integration allows accounts to be boarded to Repay using TurboApp in Merchant Central. This integration can also support boarding to the TSYS Frontend when enabled during setup.

Using Repay boarding helps partners streamline merchant onboarding, reduce manual entry, and configure processor-specific values directly in Merchant Central.

Once enabled, partners can create the Repay processor, configure the TurboApp Boarding API, manage sales reps and sort codes, and optionally set default values for future applications.

Prerequisites

Before setting up Repay boarding, make sure you have:

• Access to Merchant Central with permission to manage processors and TurboApp settings.
• The Repay login, password, and any other required processor credentials.
• The REPAY_BOARDING feature flag enabled on your Merchant Central site (contact support to enable).

Navigating to Repay boarding setup

Repay boarding setup is completed in multiple areas of Merchant Central:

• To create the Repay processor, navigate to Manage → Processors → Processor Settings.
• To configure the TurboApp Boarding API, navigate to Manage → TurboApp → Boarding APIs.
• To configure optional default values, navigate to Manage → TurboApp → Default Values.

How does Repay boarding work?

Repay boarding connects Merchant Central, TurboApp, and the Repay processor so partners can submit merchant account information through a configured Boarding API.

Partners and their staff configure the processor, credentials, sort codes, sales reps, and default values in Merchant Central. When a merchant account is boarded through TurboApp, Merchant Central uses the configured Repay Boarding API settings to send the applicable account data to Repay.

If TSYS Frontend boarding is enabled, the setup can also support boarding to the TSYS Frontend as part of the Repay configuration.

How to add a new processor with a data source

Add the Repay processor

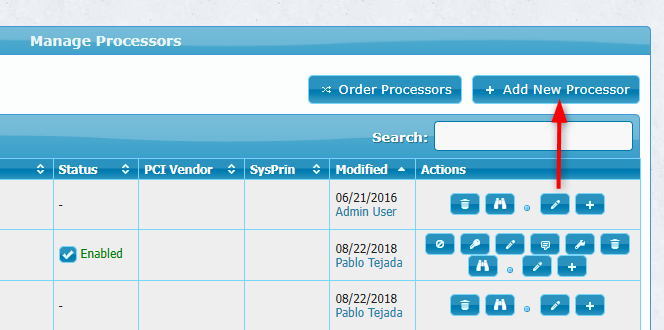

Navigate to Manage → Processors → Processor Settings, then click Add New Processor.

Configure the processor settings

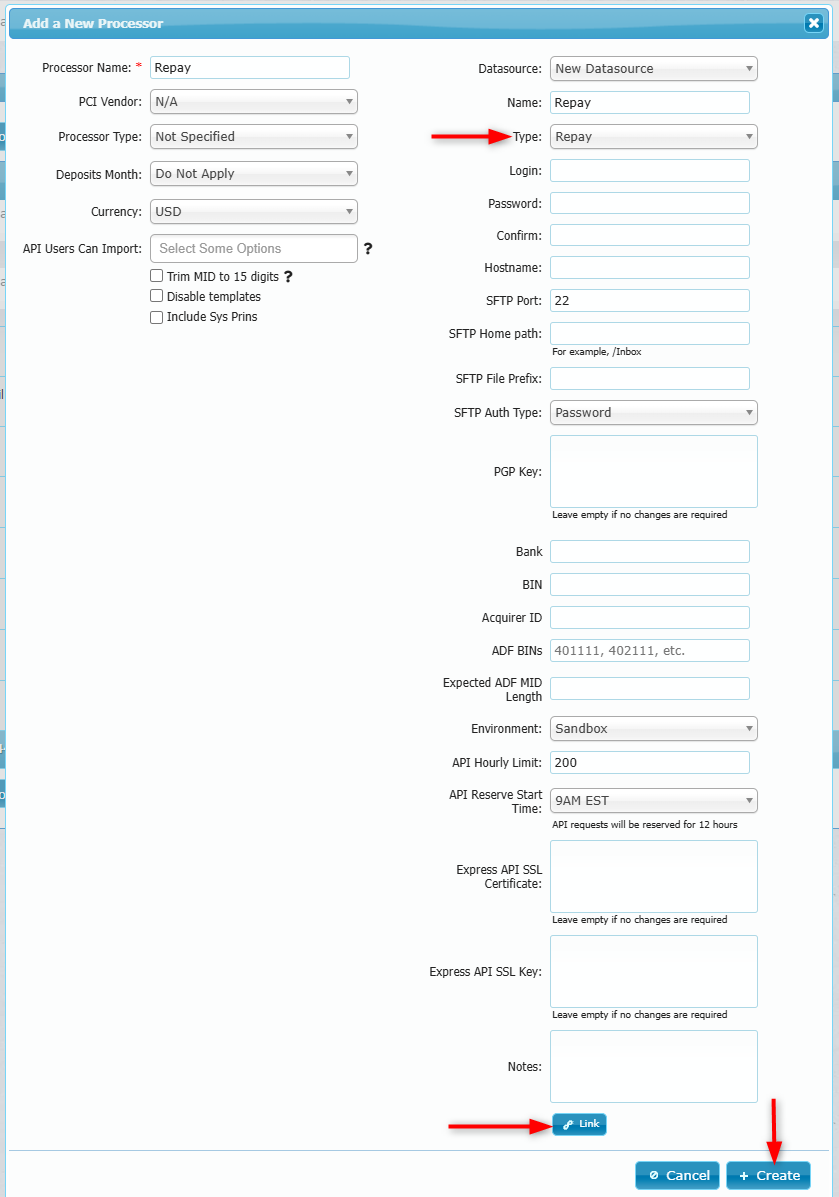

In the Add New Processor popup window, configure the processor using the following steps:

1. Set the processor name to Repay.
2. Select New Datasource in the Datasource dropdown.
3. Set the datasource name to Repay.
4. Select the Repay datasource type to display Repay-specific settings.
5. Enter the login, password, and any other required information in the fields that appear.
6. Click Link at the bottom of the popup.

7. Click Create to finish creating the Repay processor.



How to configure the TurboApp Boarding API

Enable the Repay processor

1. Navigate to Manage → TurboApp → Boarding APIs.

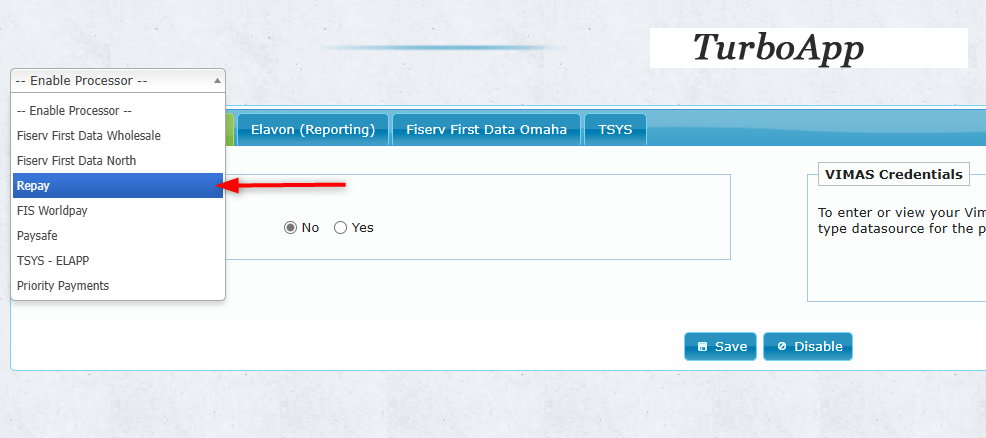

2. Enable the Repay processor.



Add a new Boarding API setup

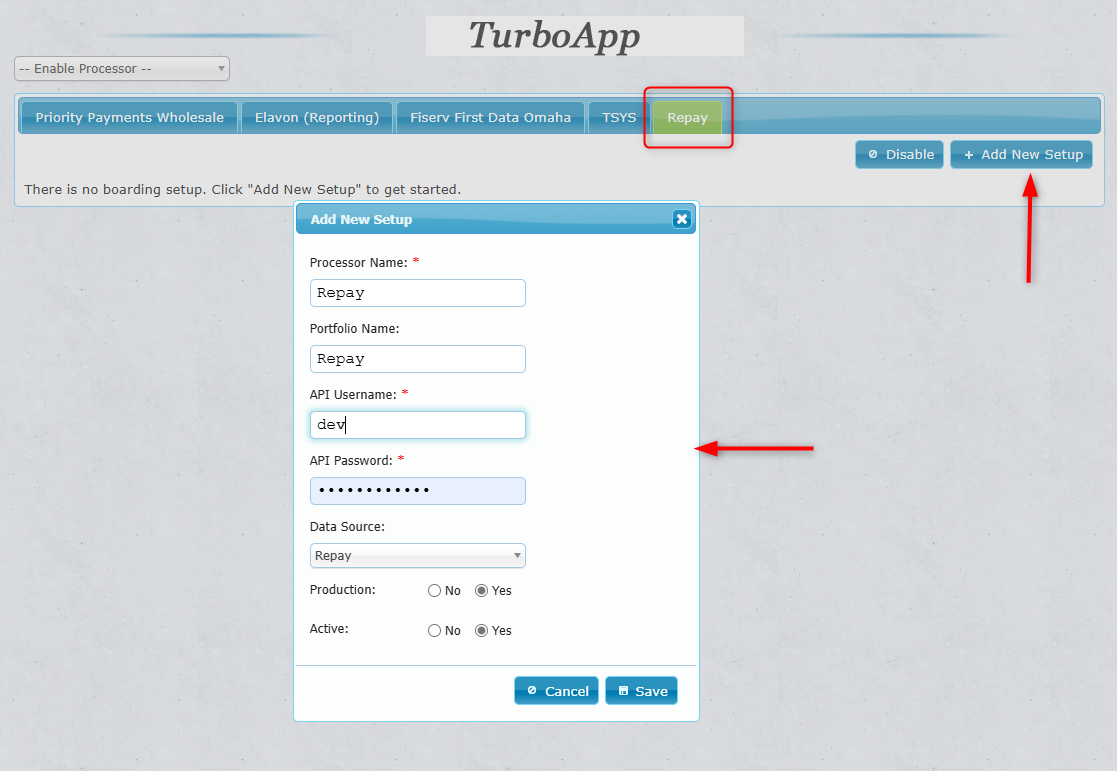

1. Click Add New Setup.
2. Configure the processor settings.

3. Save the setup.

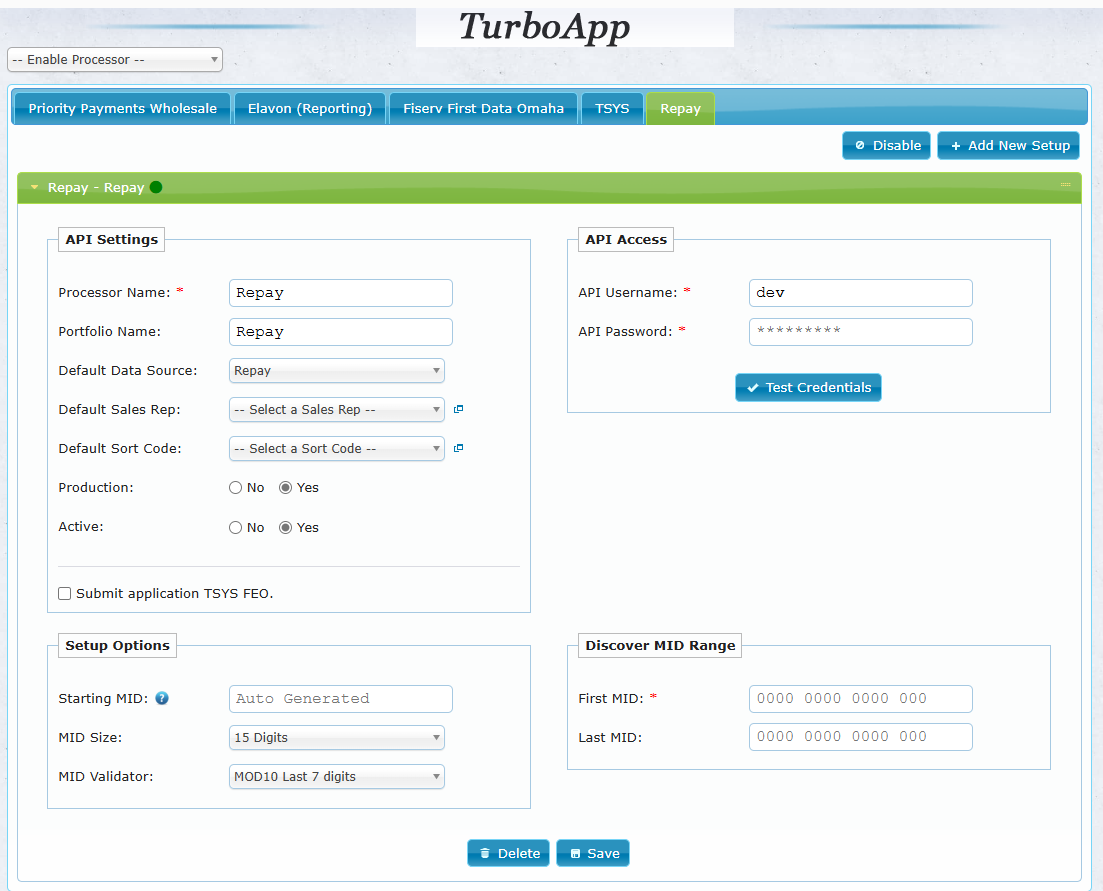

Test credentials and update settings

After the new Boarding API is saved, test the user credentials and update any additional settings as needed.

Manage Repay Sales Reps and Repay Sort Codes

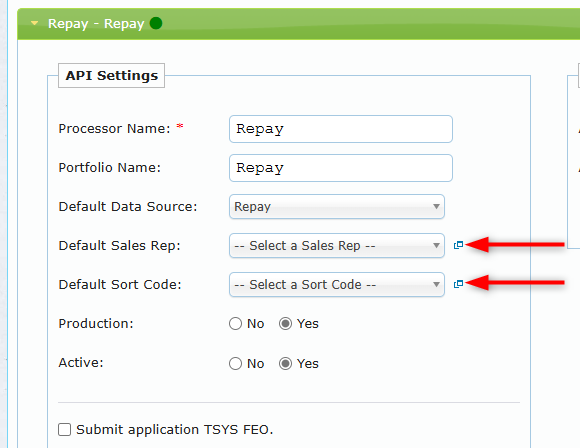

To manage Repay Sales Reps or Repay Sort Codes, click the icons next to those settings.

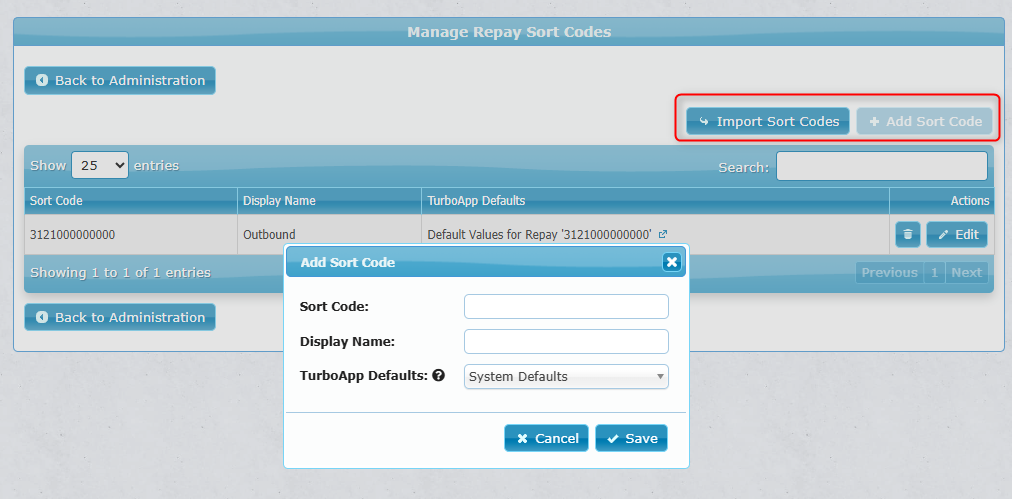

Sort codes can be imported in bulk or added manually.

Enable TSYS Frontend boarding

To enable TSYS Frontend boarding, select the TSYS Frontend boarding option in the Repay Boarding API settings.

How to create default values

After the Repay processor and Boarding API are configured, you can optionally configure TurboApp default values for the Repay processor.

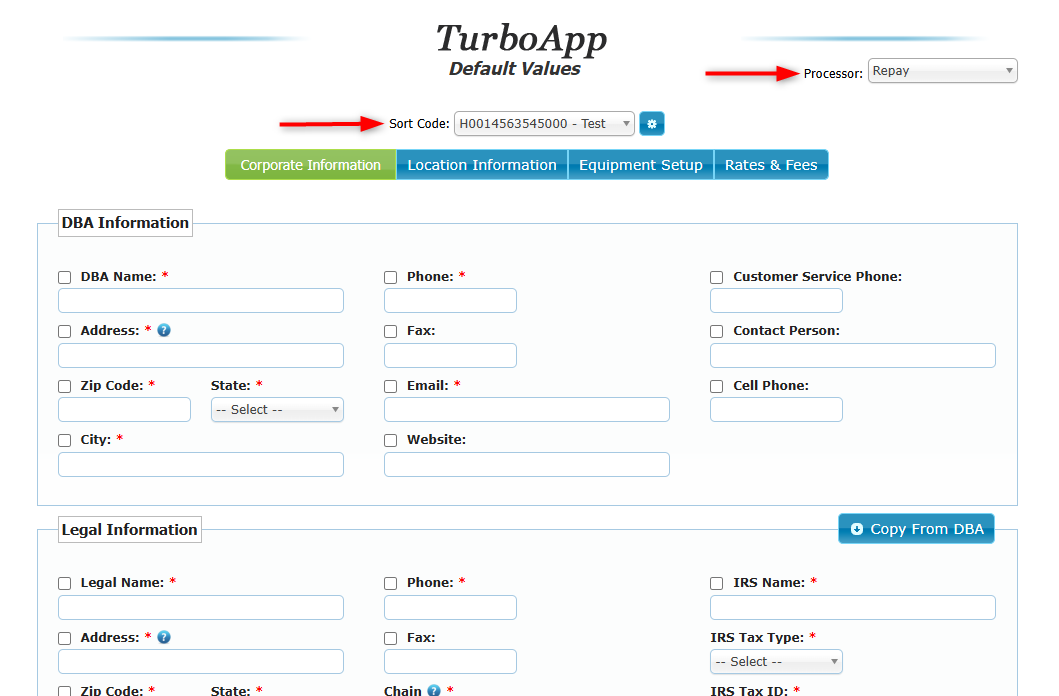

1. Navigate to Manage → TurboApp → Default Values.
2. Select the Repay processor.
3. Select the applicable Sort Code.
4. Edit the default values.
5. Save your changes.

While on the Rates & Fees page, you can click Add Fee to add other fee fields to use when boarding an account.
